High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and Hydraulic Outriggers

High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and Hydraulic Outriggers

High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and Hydraulic Outriggers
High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and Hydraulic Outriggers
High Performance Bridge Inspection Truck with 12m-20m Working Height Euro 4/2/5/6 Emission Standard and Hydraulic Outriggers
Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: SINOTRUK
Chứng nhận: CE
Số mô hình: xe kiểm tra cầu
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 chiếc
Giá bán: Có thể đàm phán
chi tiết đóng gói: khỏa thân
Thời gian giao hàng: 35 ngày làm việc
Điều khoản thanh toán: L/C,T/T
Khả năng cung cấp: 500 đơn vị/năm
Tiếp xúc
Chi tiết sản phẩm
Kiểu: Xe kiểm tra cầu Tiêu chuẩn khí thải: Euro 4/2/5/6
Chứng nhận: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE Loại truyền động: Thủ công
Tình trạng: Mới Số lượng chỗ ngồi: 2~3
Mã HS: 8705909990 Dung tích bình nhiên liệu: 400L
Làm nổi bật:

12m-20m Working Height Bridge Inspection Truck

,

Euro 4/2/5/6 Emission Standard Bridge Maintenance Vehicle

,

Hydraulic Outriggers Hydraulic Bridge Inspection Vehicle

High Performance Hydraulic Bridge Inspection Vehicles
Professional Bridge Inspection and Maintenance Solution

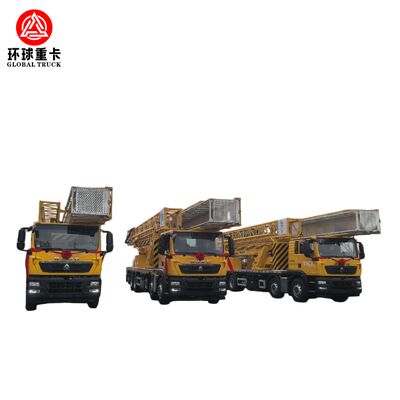

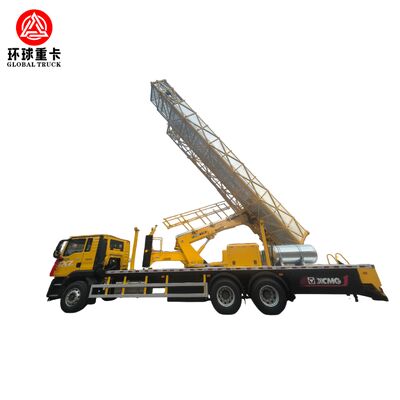

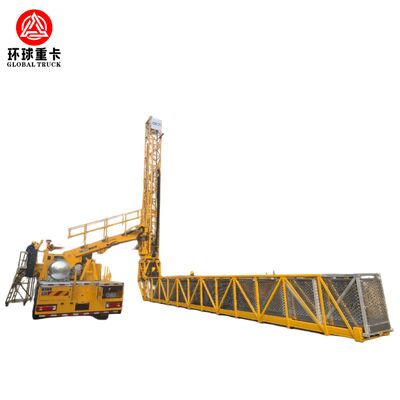

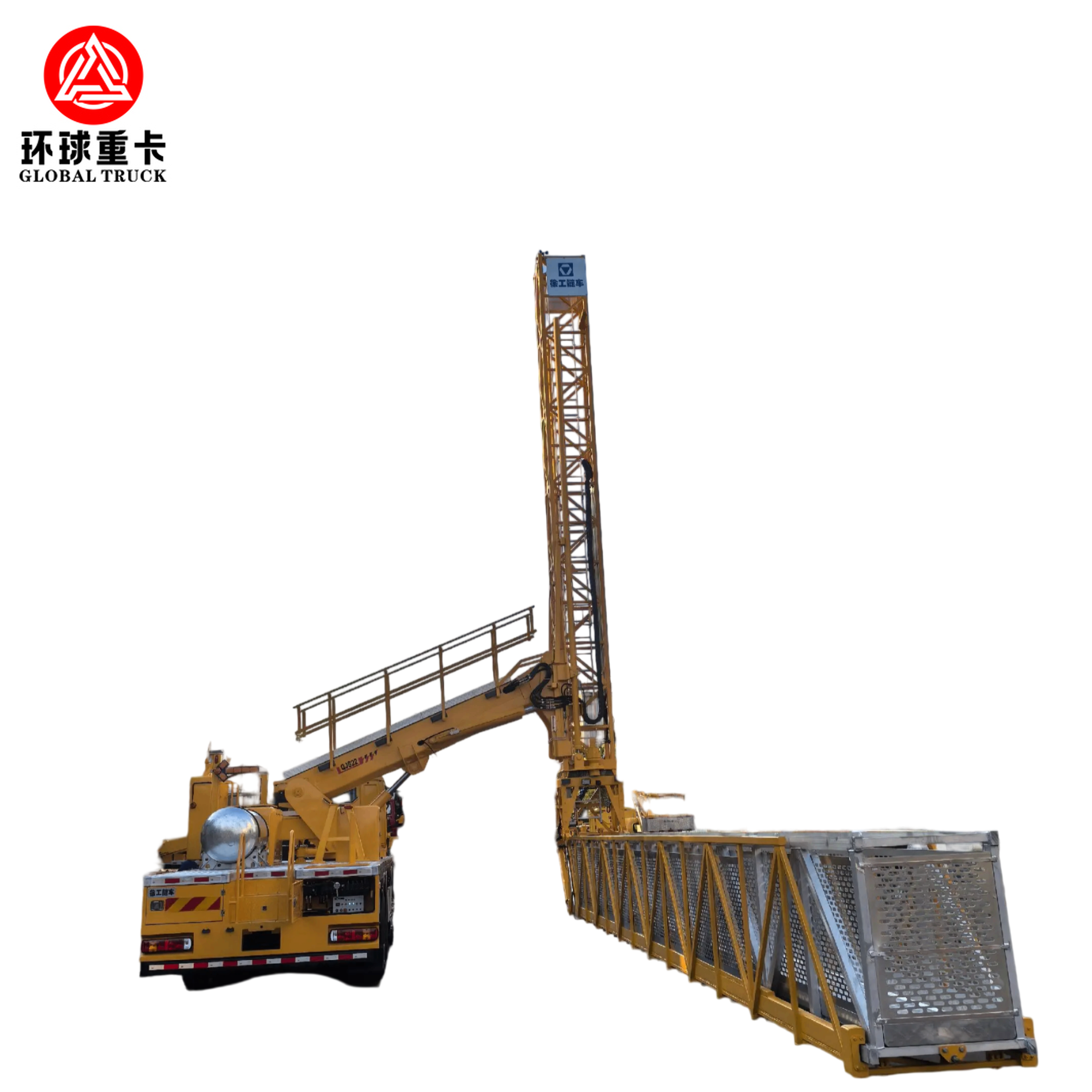

This advanced bridge inspection truck combines XCMG upper structure with SINOTRUK HOWO chassis to deliver reliable structural safety assessments and maintenance operations.

Product Specifications
Product Name Bridge Inspection Truck
Application Bridge inspection and maintenance
Upper Structure Brand XCMG
Chassis Brand SINOTRUK HOWO
Condition New
Origin China
Dimensions and Weight
  • Overall Dimension: 9000-12000 mm (configuration dependent)
  • Gross Vehicle Weight: 18,000 - 25,000 kg
  • Wheelbase: 3800 - 5000 mm
  • Platform Size: 1200 × 800 mm (customizable)
Working Performance
  • Maximum Working Height: 12m - 20m
  • Maximum Horizontal Reach: 8m - 12m
  • Platform Load Capacity: 200 - 400 kg
  • Boom Extension Sections: Multi-section design
  • Operation Range: Multi-directional access under bridge structures
  • Deployment Time: Fast hydraulic deployment system
Boom Structure
  • Type: Telescopic / Folding arm
  • Material: High-strength structural steel
  • Surface Treatment: Anti-corrosion coating
  • Movement: Smooth and stable hydraulic extension
  • Rotation System: Optional continuous rotation
Outrigger System
  • Type: Hydraulic outriggers
  • Control: Independent or centralized control
  • Function: Automatic leveling
  • Safety: Interlock protection system
  • Stability: Designed for uneven ground conditions
Hydraulic System
  • Pump Type: Gear pump or piston pump (optional)
  • Control Valve: Precision multi-way valve
  • System Pressure: 16-20 MPa
  • Oil Tank Capacity: Sufficient for continuous operation
  • Cooling System: Equipped with oil cooling device
  • Leakage Protection: High sealing performance
Electrical and Control System
  • Voltage: 24V DC
  • Control Mode: Ground control, platform control, optional remote control
  • Control Interface: Simple and intuitive
  • Lighting System: LED working lights
  • Protection: Waterproof and dustproof wiring system
Safety Configuration
  • Emergency stop buttons (ground and platform)
  • Overload protection system
  • Anti-overturning system
  • Hydraulic lock system
  • Emergency lowering device
  • Safety guardrails on platform
  • Anti-slip platform surface
  • Limit protection for movement range
Chassis Details (HOWO)
  • Cabin: Standard HOWO cabin with air conditioning
  • Driving Type: Left-hand drive (standard)
  • Suspension: Heavy-duty suspension system
  • Axle: Reinforced axle for heavy load
  • Tire: Heavy-duty radial tires
  • Fuel Type: Diesel
  • Fuel Consumption: Optimized for long-distance operation
Environmental Adaptability

Designed to operate effectively in challenging conditions including high temperature environments, dusty and rough road conditions, long-distance transportation scenarios, and outdoor continuous working conditions.

Optional Configurations
  • 360-degree rotation system
  • Wireless remote control
  • Tool storage box
  • Auxiliary power system
  • Camera monitoring system
  • Customized platform size
  • Higher working height configuration
Packaging and Transportation
  • Packaging: Wax spraying for anti-rust protection
  • Shipping Method: RO-RO vessel, bulk cargo ship
  • Container shipment available for smaller models
  • Secure fixing for long-distance sea transport
Service Support
  • Pre-delivery inspection report
  • Operation manual and guidance
  • Technical support via video or remote assistance
  • Spare parts supply support
  • Optional on-site service
