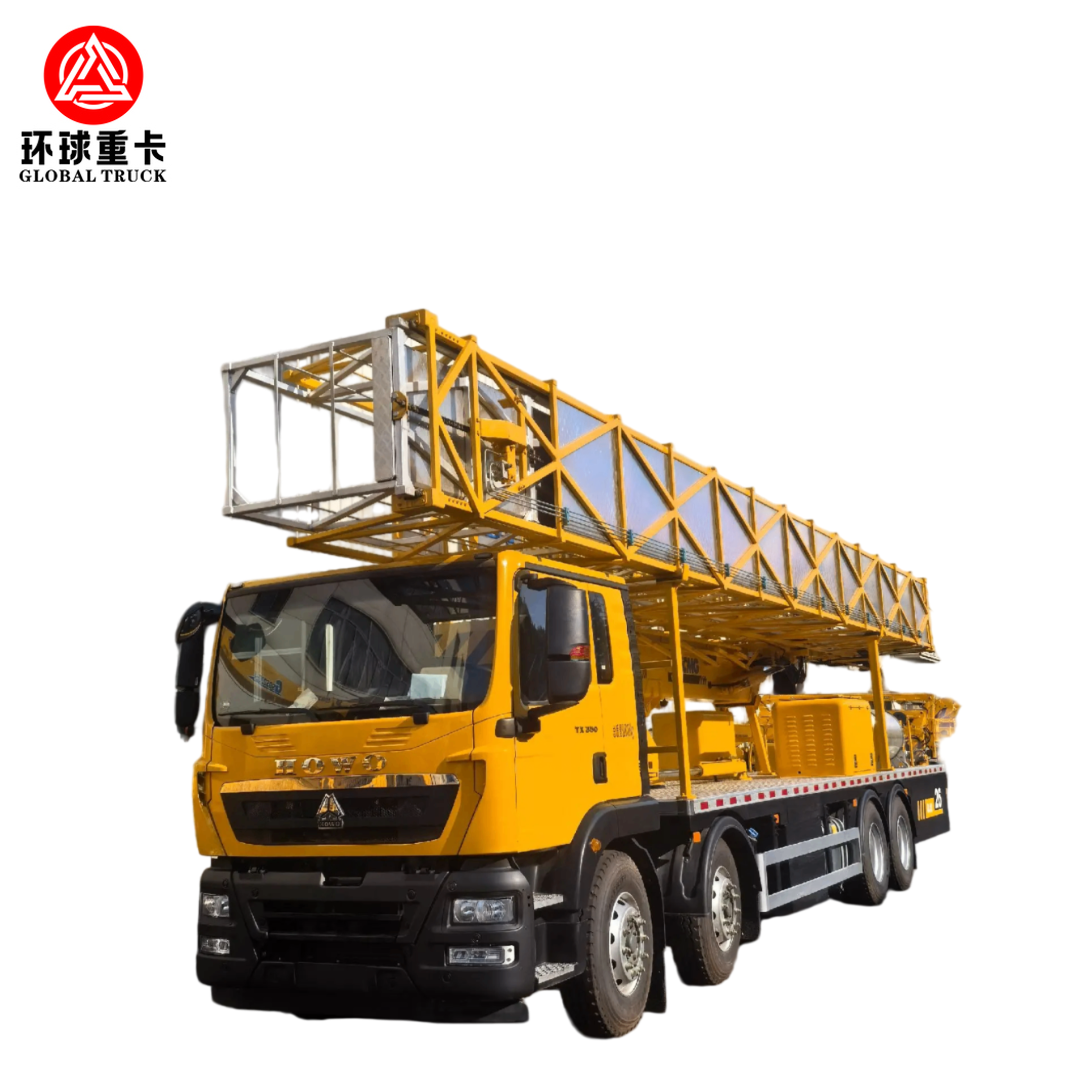

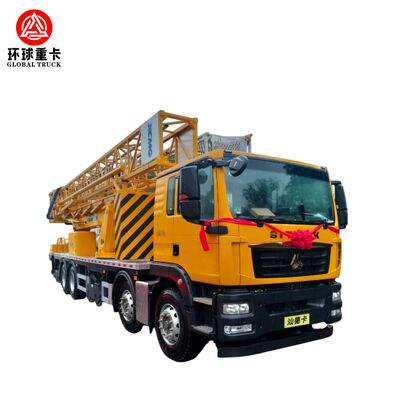

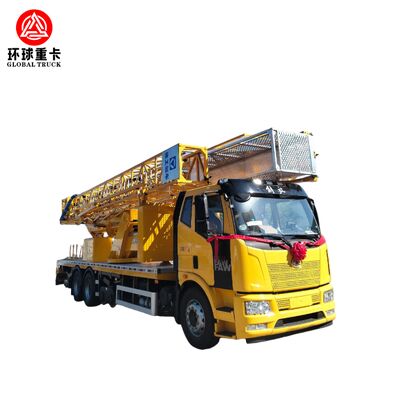

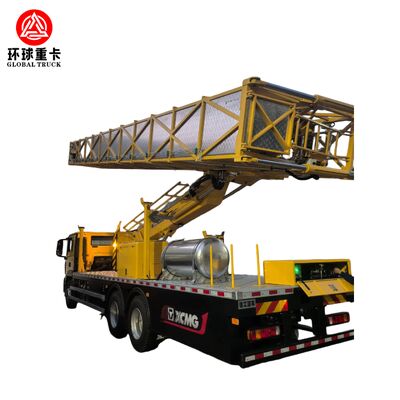

HOWO Reliable Sinotruk Sitrak Diesel Powered Bridge Inspection Vehicle with Folding Boom Lift
This specialized diesel-powered bridge inspection vehicle features a hydraulic folding boom system for safe and efficient access to bridge undersides, piers, beams, and elevated structures. Built on reliable heavy-duty chassis platforms including Sinotruk HOWO and Sitrak, it eliminates the need for scaffolding or lane closures in many inspection scenarios.
Chassis & Powertrain Specifications
- Drive Configuration: 6×4 or 8×4 heavy-duty chassis
- Engine: Diesel-powered, Euro 5 / Euro 6 optional
- Engine Power: 340-440 HP
- Transmission: Manual or automated manual transmission
- Suspension: Reinforced heavy-duty system
- Outriggers: Full hydraulic stabilizers for operational stability
- Maximum Travel Speed: 80-90 km/h
The chassis provides exceptional load-bearing capability and road stability for safe transport between inspection sites.
Folding Boom Lift System
- Boom Type: Multi-section hydraulic folding boom
- Working Depth (Under Bridge): Up to 14-22 meters (configurable)
- Horizontal Outreach: 12-20 meters
- Platform Rotation: 180°-360° rotation
- Platform Load Capacity: 200-400 kg
- Platform Type: Anti-slip inspection basket with guardrails
The articulated folding boom allows operators to access complex bridge geometries, including beams, bearings, cables, and expansion joints.
Hydraulic & Control System
- Fully hydraulic boom operation
- Electro-hydraulic proportional control
- Remote control option
- Emergency backup pump system
- Real-time operation monitoring
- Load moment limiting system
The advanced control system ensures precise movement, smooth operation, and safe positioning during inspection tasks.
Operational Features
- Rapid deployment with hydraulic outriggers
- Stable under-bridge access without scaffolding
- Suitable for highway, railway, and municipal bridges
- Designed for continuous inspection operations
- Modular structure for simplified maintenance
Safety Systems
- Overload protection system
- Emergency stop switches (platform & ground control)
- Boom angle and extension limit protection
- Hydraulic safety lock valves
- Wind speed monitoring system (optional)
- Anti-slip platform flooring
Safety design meets engineering standards for aerial work and structural inspection tasks.
Application Scenarios
- Highway bridge structural inspection
- Railway bridge maintenance
- Urban overpass evaluation
- Cable-stayed and beam bridge inspection
- Infrastructure maintenance projects
- Municipal engineering departments
Optional Configurations
- Night inspection lighting system
- HD inspection camera integration
- Data acquisition and recording system
- Insulated platform for electrical bridge components
- Cold climate hydraulic system package
- Corrosion-resistant boom coating for coastal environments
Frequently Asked Questions
What is the maximum under-bridge working depth?
Typically 14-22 meters, depending on configuration.
Does it require full road closure?
In many cases, partial lane control is sufficient due to lateral boom reach.
Can it operate on different bridge types?
Yes, suitable for beam bridges, arch bridges, cable-stayed bridges, and viaducts.
Is customization available?
Yes, working height, platform capacity, and control systems can be tailored.
What makes the folding boom design advantageous?
It allows flexible access to complex bridge structures and improves operational efficiency.
